Bosch PXX821D66E, Series 8, hob with extractor hood (induction), 80 cm, flush (integrated)
- The flexible cooking zone is automatically connected or separated based on the size and shape of the cookware placed.
- Required cutout for installation (HxWxD mm): 227 x 796 x 516
- Induction Hob with fully integrated, powerful downdraft extractor module.
- Suitable for recirculation or exhaust air operation (including differentiated software modes). Installation Accessories for unguided recirculating air, including four cleanAir Plus odor filters and a telescopic sliding element, are included in the scope of delivery of the Hob. Accessories for other installation options are available, details in the planning notes.
- Aesthetically integrated, flush air inlet design with floating, heat-resistant glass ceramic element for free movement and placement of cookware.
- 17 electronically controlled power levels and 2 Boost/intensive levels (with automatic reset) through the DirectSelect Premium. Sensor-based, fully automatic control of the fan levels:
- Automatic switching on of the ventilation system when a cooking zone is used.
- Sensor-based and Hob-based fully automatic control of the fan levels
- 3 possible sensitivity modes of the algorithm for maximum comfort (noise-oriented, balanced, performance-oriented).
- Automatic delayed switch-off after cooking to eliminate residual odors after cooking (in specific ultra-low-noise fan level, 12min (exhaust air), 30min (recirculating air), manual can be switched off)
- Manual control possible with DirectSelect Premium.
- Fan technology with highly efficient and low-noise EcoSilence Drive motor. Flow-optimized air flow in the interior
- Easy removal and cleaning of the grease filter and overflow protection unit.
- Convenient one-hand removal of the filter unit.
- Large, 12 -layered stainless steel grease filters for high grease filtration efficiency (94%).
- All parts are easy to clean, Dishwasher-safe and heat-resistant.
- Condensate and overflow protection container, approx. 200 ml capacity.< /li>
- Safety overflow tank (Dishwasher safe) with an additional 700 ml capacity. Easily accessible and removable from below.
- A total capacity of 900 ml (200 ml + 700 ml)
- Waterproof ventilation system
- Extractor performance:
- Exhaust air performance (according to EN 61591): min. normal level 154 m3/h, max. normal level 500 m3/h, max. boost/intensive level 622 m3/h
- Noise levels during exhaust air operation: min. normal level 42 dB re 1 pW, max. normal level 69 dB re 1 pW, max. boost/intensive level 74 dB re 1 pW
- Noise values in recirculation mode: min. normal level 41 dB re 1 pW, max. normal level 68 dB re 1 pW, max. boost/intensive level 72 dB re 1 pW
- Grease filter efficiency: 94%
- Average energy consumption: 61.8 kWh/year < li>Energy efficiency class: B (with a scale of energy efficiency classes from A+++ to D)
- Fan efficiency class: A
- Average energy consumption: 57
- Grease filter Efficiency class: B
- Noise min./max. Normal level: 42 dB & 69 dB

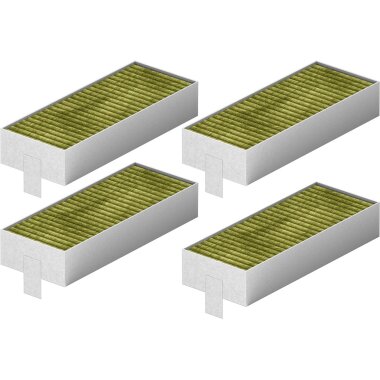

- In recirculation mode, 2 x 2 directly integrated, powerful Clean Air recirculation filters.
- Optimized odor reduction when cooking with complex odor molecule chains (e.g. fish smells).< /li>
- Large filter surface with high odor reduction rate
- Filter life of 360 hours with intensive cooking (cannot be regenerated)
- Very low noise with optimized psychoacoustics
- Easy accessibility and easy removal from above through the air inlet
- Saturation display for cleanAir Plus odor filter via the user interface and via the Home Connect app with convenient reorder option (cleanAir Plus replacement filter set HEZ9VRCR1)
- At Recirculation mode 2 x 2 directly integrated, powerful cleanAir Plus recirculation filter
- Suitable for exhaust air or recirculation installation in 4 different versions (unguided, partially guided and fully conducted recirculation or exhaust air). Installation Accessories for the unguided circulating air, including four cleanAir odor filters and a telescopic sliding element, are included in the scope of delivery of the hob. The included accessories enable quick and easy installation and can be planned for all worktop depths ≥60 cm. For other types of installation, one of the following accessory sets is recommended:
- Necessary for exhaust air - always order as a device set!
- The first relevant arch is already included in the device set: Worktop depth ≥ 60 cm - shortened extensions (90° "S" flat channel bend HEZ9VDSB4, male) Worktop depth ≥ 70 cm - standard extensions (90° "L" flat channel bend HEZ9VDSB2, male) Further accessories for the air duct must be ordered separately based on individual planning. We offer a wide range of accessories for this.
- Necessary for partial and full recirculation - always order as a device set!
- The first relevant sheet is already included in the device set: worktop depth ≥ 60 cm - shortened Extensions (90° “S” flat duct bend HEZ9VDSB4, male) Worktop depth ≥ 70 cm - standard extensions (90° “L” flat duct bend HEZ9VDSB2, male) For partially guided recirculated air up to the base area, we offer preferential piping as an accessory set HEZ9VDKR2 (designed for a working height of up to 960 mm). A wide range of special accessories are available for individual, fully managed recirculation.
- Planning information:
- Planning is possible as wall and island planning
- The product and accessories meet these requirements Provisions of the needle flame test (according to IEC 60695-11-5) and building material class B1 (according to DIN 4102-1).

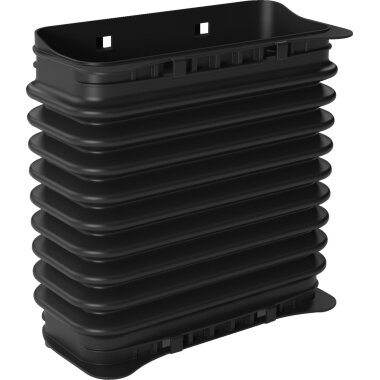

- Exception: The HEZ9VDSS2 flex sleeve accessory complies with the needle flame test (according to IEC 60695-11-5) and the building material class B2 (according to DIN 4102-1).
- The maximum immersion depth is 223 mm under glass for top-mounted devices and 227 mm for devices that are suitable for flush installation (depending on the model).
- The device must remain freely accessible from below
- No intermediate floor is necessary under the device. The drawers must be removable. The back wall can be left - all that is required is a cutout for the air outlet (position and size can be found in the installation instructions).
- An installation in unducted recirculated air requires a vertical opening of at least 25mm behind the back wall of the Furniture. For optimal performance, 50mm is recommended.
- The minimum worktop thickness is 16mm for top-mounted and flush-mounted units with the standard installation system. Installation in thinner worktops is also possible with a spare part: Material number 626792
- The total device weight is 26 kg. The load-bearing capacity and stability, especially with thin worktops, must be ensured by suitable substructures. The weight of the device (including corresponding weights such as filled Pots) and the worktop manufacturer's specifications for structural integrity must be taken into account.
- For all partial and unguided recirculation plans, an air return opening of ≥ 400 cm² is required Base area required. The opening can be realized via outlet grilles, slatted grilles or slightly shortened bases, depending on the range of the kitchen furniture manufacturer.
- The air outlet on the back of the device can be combined directly with a flat duct element (NW 150). < li>Piping up to 8 m with three 90° bends possible
- When installing an air duct in exhaust mode and a chimney-connected fireplace, the power supply must be equipped with a suitable safety switch. This is not necessary for an installation with recirculating air.
- In exhaust air mode, a backflow flap with a maximum opening pressure of 65 Pa should be installed.
- 80 cm: Space for 4 Pots or Pans
- 2 FlexInduction zones: Use cookware of any shape and size within the 40 cm long zone.
- Cooking zone at the front left: 200 mm, 240 mm, 2.2 kW (maximum power 3.7 kW)
- Rear left cooking zone: 200 mm, 240 mm, 2.2 kW (maximum power 3.7 kW)
- Rear cooking zone right: 200 mm, 240 mm, 2.2 kW (maximum power 3.7 kW)
- Cooking zone front right: 200 mm, 240 mm, 2.2 kW (maximum power 3.7 kW)
- DirectSelect Premium: Control the power directly via the extra large illuminated touch bar (invisible when switched off).
- 17 power levels: Adjust the heat with 17 power levels (9 main levels and 8 intermediate levels).
- Keep warm function: keep food warm at a preset low power level.
- Timer with switch-off function for each cooking zone: switches the cooking zone at the end of the set time out (e.g. B. with boiled eggs).
- Alarm clock: At the end of the set time a signal sounds (e.g. when cooking pasta).
- Count-up timer: shows how much Time has passed since the timer started (e.g. when cooking with potatoes).
- PowerBoost function for all cooking zones: With 50% more performance e.g. B. Bring water to a boil faster than at the highest power level.
- PanBoost: PowerBoost function for Pans: Heats Pans faster than at the highest normal power level and at the same time protects the pan coating.
- MoveMode ( 3-stage): increases or decreases the power simply by moving the pot to the front, middle or back.
- Automatic transfer when changing the cooking zone: If you place a pot on another cooking zone, transfer Transfer all previous settings to the new zone by confirming once.
- QuickStart: When switched on, the hob automatically selects the cooking zone on which cookware was placed when it was switched off.
- ReStart: In If the hob is switched off unintentionally, all settings will be retained if you switch it on again within 4 seconds.
- 1 PerfectCook cooking sensor included: prevents overcooking of Pots through the automatic temperature control of the sensor attached to the pot.
- PerfectFry frying sensor with 5 temperature levels: Prevents burning through the automatic temperature control of the sensor.
- Home Connect function (WLAN): Check whether the hob is switched off even when you are not at home and search for recipes or additional functions in the Home Connect app.
- Flush, Accentline
- 2-stage residual heat display for each cooking zone : Shows which cooking zones are still hot or warm.
- Child lock: Prevents the hob from being activated unintentionally.
- Wipe protection function: Wipe off liquids that have boiled over without unintentionally changing the settings (30 seconds all touch buttons are blocked).
- Main switch: Switch off all cooking zones at once.
- Automatic safety switch-off: For safety reasons, the hob switches off automatically after a preset time without interaction. li>
- Energy consumption display: Shows the power consumption of the last cooking process.
- Dimensions of the device (HxWxD mm): 227 x 792 x 512
- Minimum worktop thickness: 16 mm
- Total connected load: 7400 W
- PowerManagement function: Limit the maximum power if necessary (depending on the fuse protection of the electrical installation).
- li>
- For installation in stone, granite or plastic worktops. Other worktop materials require a suitability test from the worktop manufacturer.
- Various duct accessories are available to complete the fully ducted recirculation or for any other individual recirculation planning.
Energy efficiency class: | b |
Color: | Black#1 |
Product type: | Hob with integrated extractor |
Device width: | 80cm |
Controls: | Beleuchtet;Direct Select 2.0;vorneIn frontIlluminatedDirect Select 2.0 |
collection: | |
Shipping weight: | 32,00 kg |
Item weight: | 26,00 kg |
Dimensions ( Length × Width × Height ): | 51,20 × 79,20 × 22,70 cm |
Carl-Wery-Straße 34
Bayern
München, Deutschland, 81739
https://www.bsh-group.com
- Product series: Series 8 < li>Design: Built-in
- Control: Electronic
- Controls: illuminated, Direct Select 2.0 , front
- Location of control: Front
- Main surface material: Glass ceramic
- Color device : Black
- Basic color of the product: Not applicable
- Frame design: Flush Accentline
- Voltage: 220-240/380-415 V
- Maximum voltage: 415 V
- Frequency: 50-60
- Length of connection cable: 110.0 cm
- Plug type: Without plug (connection by a qualified electrician)
- Device width: 79.2 cm
- Device height: 22.7 cm
- Device depth b>: 51.2 cm
- Height of packaged device: 43 cm
- Depth of packaged product: 95 cm
- Width of packed device: 66 cm
- Minimum niche height: 50 cm
- Minimum niche width b>: 78 cm
- Niche depth: 22.7 cm
- Net weight: 26.0 kg < li>Gross weight: 32.4 kg
- Air outlet: Yes
- Connection load: 7400 W
- Consumption of the 2nd heating element per kg: 185.0 Wh/kg
- Avg. Annual energy consumption: 61.8 kWh/year
- Energy efficiency index (2010/30/EU): 57.0%
- Air flow increased (2010 /30/EU): 622.0 m³/h
- Max. Air volume: 500 m³/h
- Minimum air flow: 154.0 m³/h
- Liquid dynamic efficiency (2010/30/EU) : 28.1
- Sound power dB: 69 dB(A) re 1 pW
- Grease filter efficiency (2010/30/EU ): 94.0 %
- Volume at max. speed (2010/30/EC): 69 dB
- Volume at min . Speed (2010/30/EC): 42 dB
- Energy-intelligent device, can optimize consumption behavior (2017/1369/EU): No < li>Wireless communication possible: Yes, built into the device
- Network broadband technology: Not applicable
- SIM Card slot available: No
- Ability to remotely upgrade: No
- Ability to remotely update for maintenance : Yes
- Accessories supplied: 1 x telescopic slide element for circulating air, 1 x Clean Air Plus odor filter
- Automatic program: Yes li>
- Dimensions of the 2nd cooking zone: 40 cm
- Dimensions of the 6th cooking zone: 40 cm
- < b>Cover type: Without
- Location of the cooking zone: front left
- Operation indicator light: No
- Location of the 2nd cooking zone: middle left
- Location of the 3rd cooking zone: back left
- Location of the 4th cooking zone: middle at the back
- Location of the 5th cooking zone: back right
- Location of the 6th cooking zone< /b>: middle right
- Location of the 7th cooking zone: front right
- Location of the 8th cooking zone: front middle / central
- Location of the 9th cooking zone: central
- Main switch: Yes
- Electronic clock: Yes
- Total fan power: 170 W
- Power of the 2nd cooking zone: 3.3 W< /li>
- Power of the 6th cooking zone: 3.3 W
- Residual heat display: Separate
- Control< /b>: Stepless energy control
- Safety devices: Key lock, child lock, power management function, safety timer, pot detection
- Type of 2. Cooking zone: Induction
- Type of 6th cooking zone: Induction
- Diameter of the mixing bowl: 622 m³/h
- Height of the mixing bowl: 595.0 m³/h
- Max. Fan performance - exhaust air mode: 500 m³/h
- Max. Fan power - recirculation mode: 499 m³/h
- Odour filter: No
- Prevent boiling over with cooking sensor: Yes
- Flexible induction technology supported : Yes
- Hob with booster function: Yes
- Temperature control for perfect frying results: Yes
- Cord included: Yes
- Wok burner supported: No 1 phase, 3 phases[DE, RU]
- COMBINED_NOMENCLATURE_CODE: 85166050
