Bosch

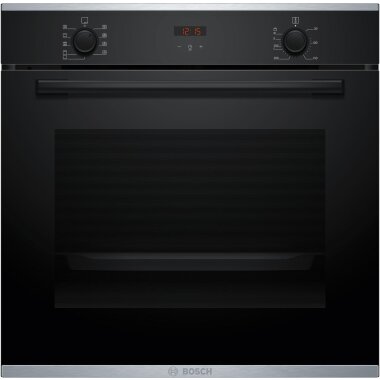

Bosch HBD436FH84, built-in oven set, HBA234BB3 + PVS811B16E, built-in oven, hob with extractor hood (induction)

1.695,99 €

3.549,00 €**

(Save 52%, i.e. 1.853,01 €)

Only 1.662,07 € by payment in advance
less 2% discount

incl. 19% VAT , Free shipping

Delivery time: 8 - 10 Workdays (DE - int. shipments may differ)

Unit od ac

oder

Garantieverlängerung 5 Jahre (€ 60,00)

Bosch

Bosch HBD436FH84, built-in oven set, HBA234BB3 + PVS811B16E, built-in oven, hob with extractor hood (induction)

SKU: HBD436FH84
GTIN: 4242005497775

Europe's most powerful inclined air recirculation cooker with iQdrive motor and air quality sensor for an intelligent, low-odor and low-noise kitchen.

iQdrive motor - the quiet, powerful motor for efficient extraction of odors and vapors
Detects steam and odors and automatically adjusts the extraction rate - air quality sensor with cookConnect system
cookConnect system - control the power levels and lighting of the cooker hood via your hob.
Siemens cooker hoods are equipped with adjustable LED lighting and you can set the light temperature as you wish. Turn your kitchen into an individual place.
Thanks to touchControl, the extractor power and LED lighting can be selected directly.

Bosch

Bosch HBD436FH84, built-in oven set, HBA234BB3 + PVS811B16E, built-in oven, hob with extractor hood (induction)

1.695,99 €

3.549,00 €**

(Save 52%, i.e. 1.853,01 €)

Only 1.662,07 € by payment in advance
less 2% discount

incl. 19% VAT , Free shipping

Delivery time: 8 - 10 Workdays (DE - int. shipments may differ)

Unit od ac

oder

Garantieverlängerung 5 Jahre (€ 60,00)

Nothing found?

You could not find your desired device yet or you need a device of the manufacturers shown above? Then please tell us the desired item numbers and we will send you a non-binding offer.

Submit device request now

Bosch HBD436FH84, built-in oven set, HBA234BB3 + PVS811B16E, built-in oven, hob with extractor hood (induction)

Design:

Inclined-Esse
Wall mounting
Glass panel: printed in black
Choice of exhaust air or recirculation mode
Chimneyless operation possible with recirculated air
The Clean Air Plus recirculation set (accessory) or the Longlife recirculation set (accessory) is required for recirculation mode.

Most important features:

Energy-saving operation with iQdrive motor technology
Lighting: 2 pcs, led, 3 w, with adjustable color temperature
softLight: the lighting switches on and off gently.
Dimming function: the brightness of the lighting can be adjusted.
Color temperature: 3500 K
Illuminance: 422 lux
Boost position: intermediate position of the glass filter Cover for better extraction of particularly strong cooking odors and steam.
Extractor hood on the front and underside
3 metal grease filters

Comfort functions:

Air quality sensor bme688: Automatic sensor-based power control for best results
T54-SE5D
3 power levels + 2 intensive levels
Automatic reset from intensive to normal level after 6 min.
Saturation indicator for grease and odor filter
Automatic after-run: 10 minutes

Digital functions:

Home Connect: Operating, checking and setting your hood via smartphone or tablet (only in countries where the Home Connect Service is available)
The cookConnect system automatically activates the cooker hood when cooking, thanks to the WiFi connection between the stove hood and a suitable Hob.
Fully automatic extractor hood
Voice control possible via common voice assistants
Performance profiles: Choose between Standard, Power or Quiet in the Home Connect app to increase the extraction power or reduce the fan noise.
Favorites button: yes - direct access to favorite functions via a configurable button (available with connected Home Connect account)
Smart Home Trigger via the favorites button (available with connected Home Connect account): Open the smart universe of your range hood from (partner Service required).
LED lighting with adjustable light temperature: Allows you to adjust the light temperature to your personal needs via the Home Connect app
Interval function: available via the Home Connect app
The Home Connect functionality can be extended as required by integrating numerous applications from external cooperation partners (partnering)
Updateable device (available with a connected Home Connect account): Always keep the device up to date with the latest software.

Convenient cleaning:

Extremely wide opening angle for easy access to filters and easy cleaning.
The surfaces and materials are smooth and easy to clean.
Inner frame, easy to clean
Metal grease filter, Dishwasher-safe

Exhaust air performance:

In accordance with en 61591 and en/IEC 60704-2-13, your appliance can achieve the following values in exhaust air mode:
Performance level 1: Fan performance:228 m3/h; noise level: 35 dB(a) re1pW
Performance level 2: Fan performance:325 m3/h; noise value: 43 dB(a) re1pW
Power level 3: Fan output:441 m3/h; noise value: 51 dB(a) re1pW
Intensive level 1: Fan power:753 m3/h; noise level: 65 dB(a) re1pW
Intensive level 2: Fan output:1007 m3/h; noise value: 70 dB (a) re1pW
Energy efficiency class: a+ (on an energy efficiency class scale from a+++ to D)
Average energy consumption: 39.1 kWh/year*
Fan efficiency class: A*
Lighting efficiency class: A*
Grease filter efficiency class: C*

Air recirculation performance:

In accordance with en 61591 and en/IEC 60704-2-13, your appliance can achieve the following values in recirculation mode with the Clean Air plus recirculation set, for installation with chimney:
Performance level 1: Fan performance:211 m3/h; noise value: 42 dB(a) re1pW
Performance level 2: Fan output:315 m3/h; noise value: 51 dB(a) re1pW
Power level 3: Fan output:435 m3/h; noise value: 59 dB(a) re1pW
Intensive level 1: Fan power:752 m3/h; noise level: 72 dB(a) re1pW
Intensive stage 2: Fan output: 964 m3/h; noise value: 78 dB(a) re1pW
In accordance with en 61591 and en/IEC 60704-2-13, your appliance can achieve the following values in recirculation mode with the Clean Air plus recirculation set for chimneyless installation:
Performance level 1: Fan performance:214 m3/h; noise value: 42 dB(a) re1pW
Performance level 2: Fan output:312 m3/h; noise value: 51 dB(a) re1pW
Power level 3: Fan power:437 m3/h; noise value: 60 dB(a) re1pW
Intensive level 1: Fan output:751 m3/h; noise value: 74 dB(a) re1pW
Intensive level 2: Fan output:944 m3/h; noise value: 80 dB (a) re1pW

Technical data and sustainability:

Consumption data:
Total connected load: 250 W
Voltage: 220 - 240 V
Sustainability:
Made in Germany: manufactured in a CO2-neutral production facility
Environmentally friendly packaging
The most efficient fan technology on the market
Available odor filter as a regenerable long-life filter with a 10-year Service life
Air quality sensor bme688: sensor-based power control for best results with minimum energy consumption.

Information on planning and installation:

Unit dimensions exhaust air (HxWxD): 855-1098 x 890 x 447 mm
Recirculation unit dimensions (HxWxD): 892-1185 x 890 x 447 mm
Recirculating air installation dimensions, chimneyless (HxWxD): 471 mm x 890 mm x 447 mm
Simple and weight-reduced installation thanks to the new Easy-Installation-System
Exhaust air connection ø 150 mm
Connection cable length: 1.3 m with plug
Supplied with backflow flap
